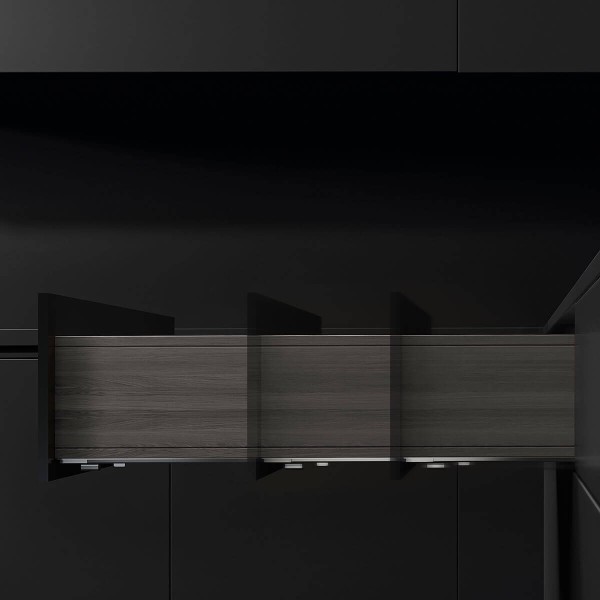

The Concelio Concealed Synchronous Damping Slide is designed to remain hidden behind the cabinet doors, providing a clean and uncluttered appearance to your cabinetry.
Please note that pre-order products will be delivered at a later date.

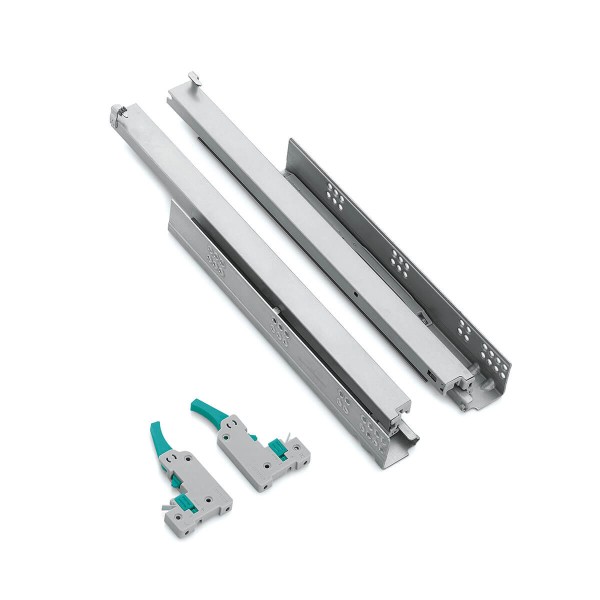

Concelio High-End Concealed Damping Slide (with handle)
The Concelio Concealed Synchronous Damping Slide is designed to remain hidden behind the cabinet doors, providing a clean and uncluttered appearance to your cabinetry.
Synchronous Sliding
- Hidden Design: The slide rail is concealed, enhancing space utilization and aesthetics.
- Smooth Operation: Drawers slide smoothly with soft cushioning, minimizing noise.

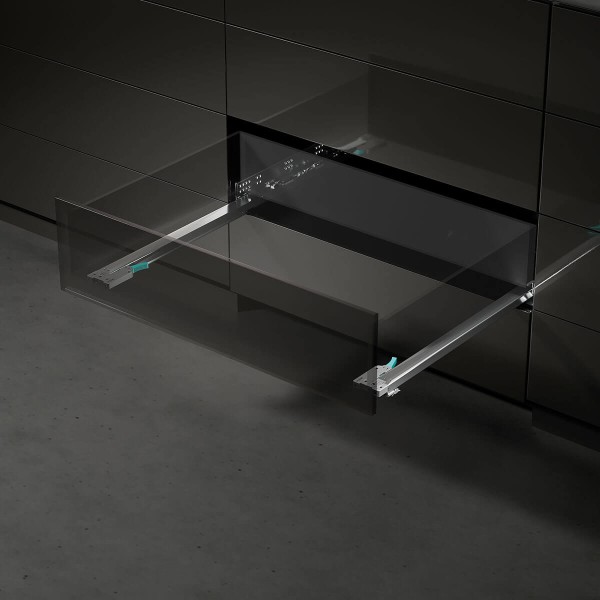

- Full Extension Rails: The 250mm-550mm slide rail length allows drawers to be fully extended in sync.
- Durability: Electro-galvanized for moisture resistance; 48-hour salt spray test doubles corrosion resistance.
- Strong Build: Thick material supports up to 30kg load, meeting high load-bearing requirements.
- Longevity: Tested for durability with 80,000 pulls, maintaining shape and functionality.
- Easy Cleaning: One-button detachment for convenient drawer cleaning.
- Adjustable: Three-dimensional adjustment, including 3mm height range, allows customization.
.jpg)
- Delivery
- Delivery Time: 2-4 Working Days
- Warranty
- 10 Years Warranty
- Certification
- American Craft
ISO9001 Quality Management System Certficiation
SGS Quality Testing Certification
SH-S7036401
| NOMINAL LENGTH | DRAWER LENGTH (mm) | Minimum Cabinet Depth (mm) |
| 250 mm | 240 | 265 |
| 300 mm | 290 | 315 |
| 350 mm | 340 | 365 |
| 400 mm | 390 | 415 |
| 450 mm | 440 | 465 |
| 500 mm | 490 | 515 |
| 550 m | 540 | 565 |
